West Virginia Loader Parts - Loaders are heavy equipment that is used in many industries. They specialize in moving and loading materials including snow, raw minerals, asphalt, gravel, demolition debris, rock, woodchips, sand, snow, dirt, grain, feed and the like. Loaders move material into dump trucks, rail cars, conveyor belts and feed-hoppers. There are many types of loaders made for specific applications including skid-steer, payloader, skip loader, front loader, scoop, shovel, bucket loader and wheel-loader models.
Description
Loaders are a type of tractor with tracks or wheels that feature a square, front-mounted wide bucket connected to the end of two arms or booms. This machine can scoop up material such as gravel or dirt or sand and transport it to another location without pushing it across the ground. Loaders transport stockpiled materials from the ground and deposit them into an open trench or dump truck. Removable or permanently mounted attachments make up the loader assembly. The bucket portion of the loader can be interchangeable with other tools. Loaders can utilize mounted forks to transport pallets or shipping containers. A hydraulically operated clamshell bucket can be attached for light dozer and scraper applications. Large bales of hay or straw can be transported via a loader with a bale grappler attachment.
A front bucket is typically part of large loaders and they are commonly called front loaders. Smaller loader tractor models can utilize a backhoe attachment and are referred to as loader backhoes, backhoe loaders or JCBs. This equipment is utilized for laying pipe, loading trucks, digging, clearing debris and similar jobs. The loader is not as efficient as other models such as an excavator or a backhoe due to its’ inefficiency of being unable to dig past its’ wheel level. The capacity of loader buckets ranges from 0.5 to 36 cubic meters. Front loader bucket capacity is greater in comparison to a backhoe loader.
Most loaders consist of wheels as opposed to tracks, although, track models are available. These models are useful in construction applications where rubber wheels would be subsequent to damage from sharp-edged items. Wheels provide better mobility and speed and less damage to paved surfaces compared to tracks; however, tracks provide better traction. In construction zones, loaders are responsible for moving materials and tools for digging around the site.
It is common to see front loaders removing snow from sidewalks, parking lots and other narrow locations that cannot handle heavy equipment. Front loaders are commonly used as snowplows once the right attachment is secured or they can use a bucket or snow-basket to transport snow into a dump truck or snow plow bin.
When transporting lighter items such as small gravel, peat or woodchips, special high-tip buckets are used to simplify bucket emptying when it is at full height. Front loaders have gained popularity over the last 20 years within earthmoving and urban engineering applications. There are many loader sizes available to facilitate many duties.
Large loaders do not rely on automotive steering mechanisms unlike standard tractors with a front bucket or backhoes. This type of loader accomplishes steering with a hydraulically actuated pivot point that is found between the front and rear axles, more commonly known as articulated steering. This model allows most of the weight to be carried by the machine thanks to the solid front axle. Greater maneuverability is offered with the articulated steering. The attachment and the front wheels rotate along the same axis, helping the operator steer the load in an arc once the machine is positioned. Once the machine is twisted to the side with a heavy load raised, there is a greater risk of turning over towards the wide side.

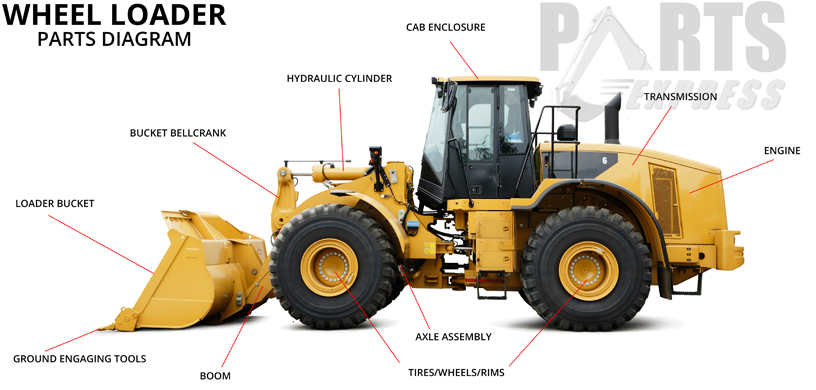

Some of the key components include hydraulic items such as pumps, motors and valves; transmission items including the gearbox, axles, pumps, motors, wheels or tracks etc., and the engine that is mostly diesel.
The engine controls the transmission and the hydraulics and these move the front attachments including a sweeper, forks, a bucket, etc. Each loader model has particular lifting capabilities and can conquer manure, sand, gravel or other items.
Wheel Loaders
The first model featured a rear-wheel drive and was based on a tractor. Today’s wheel loader models consist of articulated rear and front wheels featuring the same dimensions.
Armored Wheel Loaders
Many military jobs use an armored Caterpillar 966 wheel loader to handle construction jobs and combat engineering tactics. This equipment is commonly used for building fortification, constructing bases and disassembling roadblocks. Armor plating is placed on the machine to offer protection from Molotov cocktails, rocks, stones and gunfire. Wheel loaders have been used by certain police squads to complete military jobs such as opening up transportation routes. Remote controlled wheel loaders are used by some police and military departments.
Tractor Front Loaders
A loader addition may accompany tractors that have fifty to two-hundred HP. This kind of tractor loader was built to facilitate numerous farming activities. They are highly versatile and lower in cost in comparison to Telehandler equipment. Tractor loaders can use various attachments to enhance efficiency including spikes and hydraulic grabs to assist with silage and bale handling. Fork attachments are ideal for pallet applications and buckets are used frequently for agricultural jobs.
Compact Front End Loaders
Popular additions to CUTs or compact utility tractors and farm tractors are front-end loaders or FELs. Compact models are small and offer 18 to 50 HP, making them ideal for landscaping and groundskeeping. There are curved arm models, semi-curved and the traditional dogleg model design.
CUT size tractors featuring front-end loaders can complete numerous jobs, especially when outfitted with special attachments. For increased digging abilities, a tooth bar may be outfitted to the front edge of the machine. A QA or quick attach system or quick coupler enables buckets and attachments including pallet forks and bale spears to be easily removed and attached.
The load-haul-dump or LHD machine consists of a front end loader that is beneficial in mining applications. It uses a variety of buckets and can operate either with electric motors or diesel engines.
Skid Loaders
A small engine powered loader that has a rigid frame is called a skidsteer, skid loader or skid-steer loader. This machine has lift arms that are capable of attaching to many tools. These units consist of a 4-wheeled vehicle that mechanically synchronizes on either side. The right side wheels are able to be driven independently from the left side wheels. Typically, the wheels hold a straight, fixed alignment on the body and have no separate steering mechanism.
Differential steering accomplishes turning maneuvers. The left and right pairs of wheels can operate at different speeds to allow the machine to turn by skidding or dragging fixed-orientation wheels over the ground. The rigid frame and strong wheels stop torsional forces from happening due to the dragging motion. It is easy for soft ground and fragile road surfaces to become destroyed by the immense ground friction caused by tracked vehicles and skid steers.
There are specifically designed wheels that convert low ground friction. There are specific skid-steer units that can conduct zero-radius turns and pirouette turning to facilitate maximum maneuverability. This machine is ideal for jobs that need agile and compact equipment. Some models use tracks in place of wheels and are called multi-terrain loaders.
The lift arms in skid loaders are found beside the operator and there are pivot points located behind the shoulder’s of the operator. Due to the operators’ close proximity to moving booms, earlier models were not as safe as conventional front loaders, specifically while entering and exiting the equipment. Modern models nowadays feature enclosed cabs and extra features to ensure operator safety. Comparable to other front loader models, these machines can carry items by pushing them across the ground or carrying materials in the bucket for easy truck or trailer depositing.
History of Tracked Loaders
Tracked loaders are complete with a chassis for loading items and digging materials with a loader There have been three main design evolutions for this machine, each one improving versatility and efficiency. This equipment is capable of numerous tasks, making it a popular addition to fleets.
Initial tracked loaders were made from track tractors and had declined ability to dig into hard ground, similar to bulldozers of the same era. Most often, tracked loaders were used for moving stockpiled items into loading trucks and rail cars.
Hydraulic integration changed everything from increasing overall power to providing power to the loader linkages. Hydraulics most importantly enabled the machine to apply down-pressure to the bucket, allowing them much better digging within compact environments. The engine weight was located initially along the front are of the tracks along with the other heavy loader equipment. This design ended up causing extreme wear and tear problems throughout the undercarriage and the front idler wheels. The hydrostatic drive system became the second major design innovation to improve tracked loaders.
Swingloaders
A swingloader is a popular piece of equipment that uses a rigid frame and a swinging boom. The boom can travel 180 degrees or farther. These machines are used mainly in the railroad industry for laying rail. There are many different attachments such as magnets, buckets and forks that can be used. Agricultural applications rely on smaller machines. Swingloaders are popular in a variety of places where space is limited. These machines are commonly used in applications where space is compromised. This loader can lift and deposit on all sides.
